Heater Assemblies
Thermal Circuits has a demonstrated the willingness and capability to develop heater components into turn-key heater assemblies with value-added extensions including flex circuits, harness assemblies, heat-sinks, tubes, platens, metalwork, plastics, ceramics, quartz, glass and enclosures.
Whether your application requires simplistic sub-assembly work or turn-key contract manufacturing and commercialization of the final product, Thermal’s applications engineers are prepared to make you and your application a success. Turnkey solutions:
- Assembled and packaged, ready-for-market
- Sub-Assemblies and Contract Manufacturing
- Spares Packaging for Field Support
Heaters from Thermal Circuits offer many benefits including custom distributed watt densities, thin profiles, ease of placement and low thermal mass. They are easy to apply and provide high heat output.
Heater Assemblies – Applications

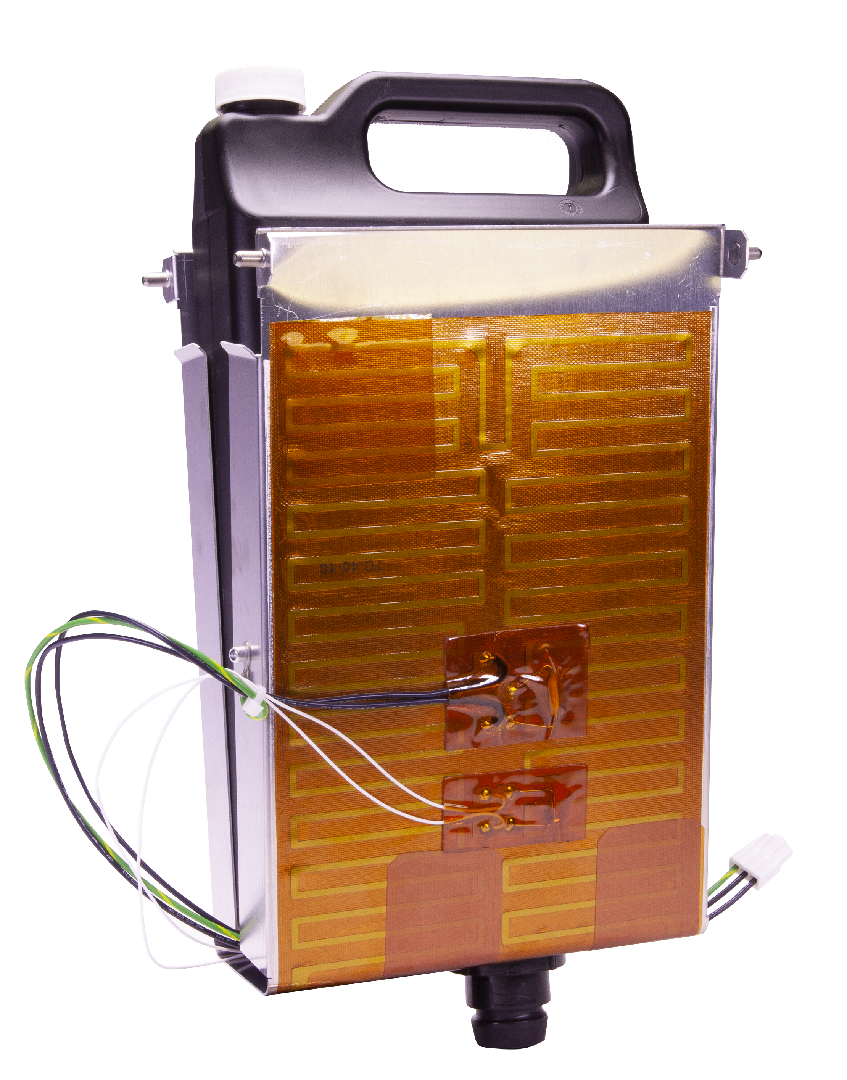

Reusable heater assembly that encloses container of wax or acrylate
Used in MultiJet Print (MJP), Selective Laser Powder Sintering (SLS), and Multijet Fusion (MJF) technologies.
800ºC HTB In-Line Semiconductor and Wafer Processing
Quartz Etchant Tank Heater
Preformed on quartz tube using high temperature binder (HTB).

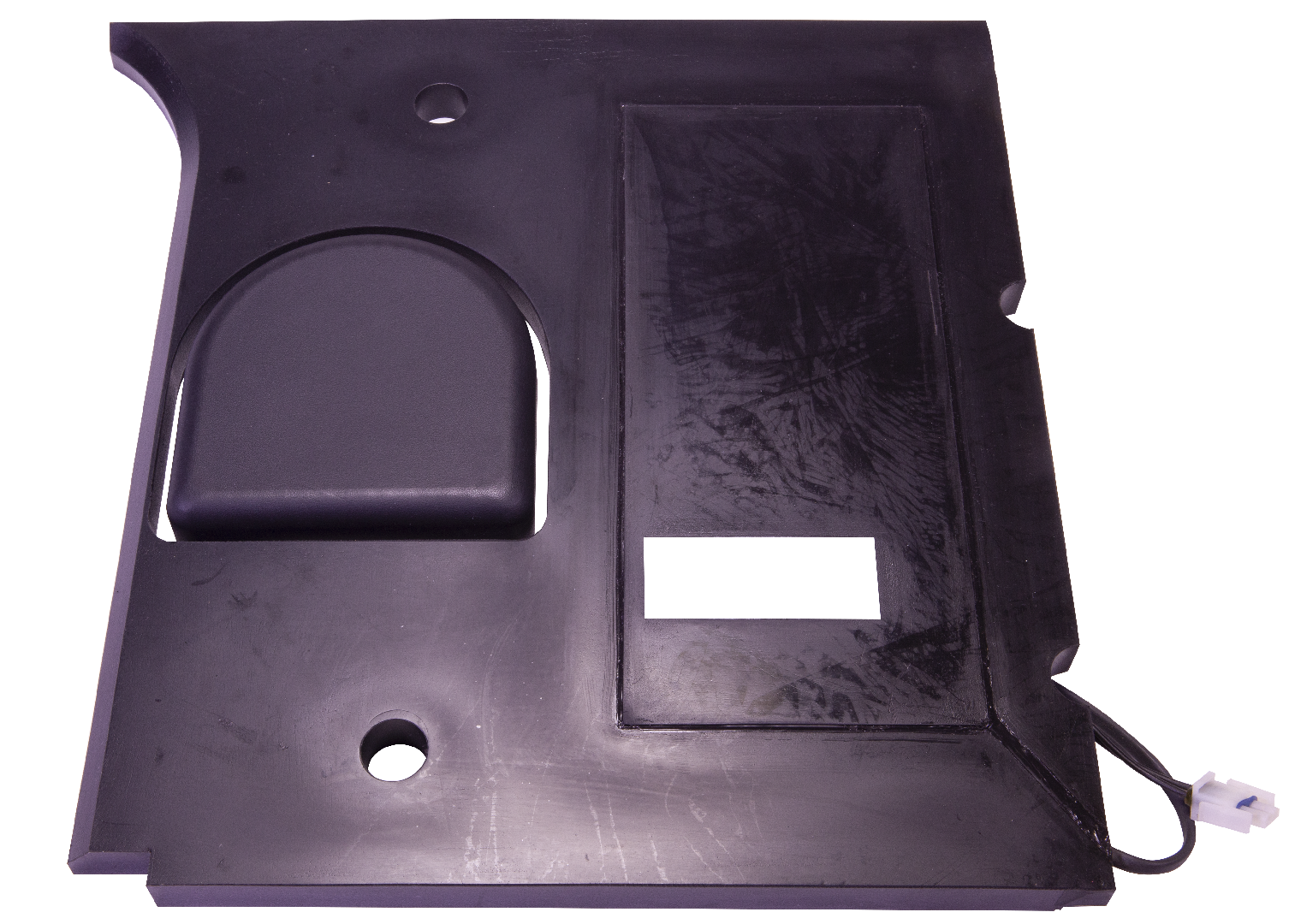

220ºC Heated Floor Pad for forklift truck used within a -40ºC/F Walk-In Freezer
Creature Comfort heater assembly to enable operators to comfortably perform in a challenging environment.
220º High Temperature, Conductive Heater Assembly with Kapton® Polyimide Insulation
Heater for Electronic Enclosure Valve Heaters
Conductive heater assembly with Kapton® Polyimide dielectric insulation. Bonded to machined metalwork with thermistor, wire harness and connector.
Mobile Intravenous Bag Heater
Used by paramedics and EMTs to provide warmed lifesaving fluids.
Conductive Heater Assembly with Silicone Rubber Insulation, vulcanized to the inside diameter of metal cylindrical IV bag warmer with thermal fuse and lead wire.
Heater Cup for Ventiliator and CPAP Humidification Systems Heater Cup
Factory bonded to a 3-Dimensional metal stamping with a thermoplastic or thermoset adhesive system.
Automotive Ball Valve Heater
Used to assure positive crankcase ventilition (PCV). Factory bonded to a 3-Dimensional metal stamping with a thermoplastic or thermoset adhesive system. With custom terminals and injection overmold.

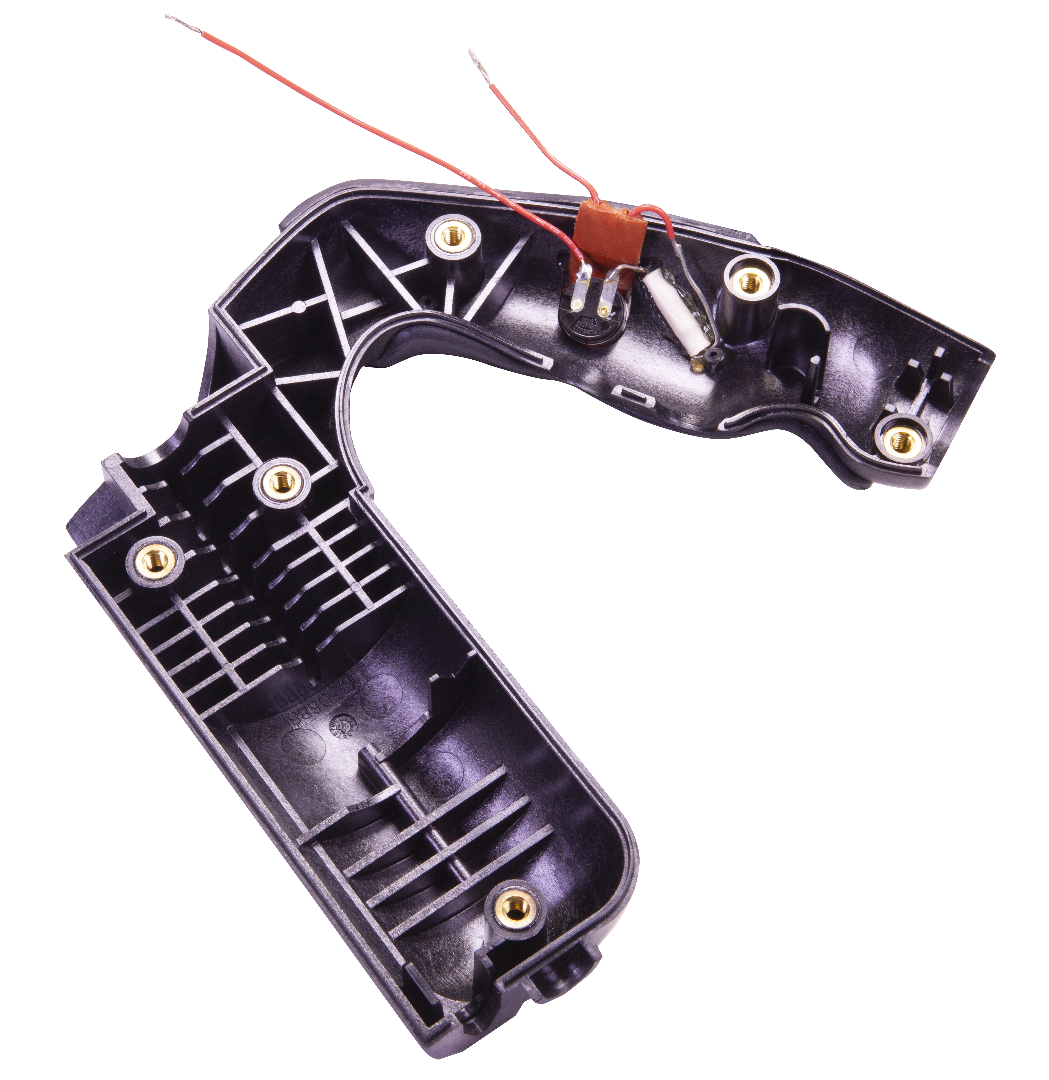

Heated Joystick to Control a Forklift Truck used within -40ºC/F Walk-In Freezer
Creature Comfort heater assembly to enable operators to comfortably perform in a challenging environment.
Engine Air Intake Port Heater
High Temperature, Conductive Heater Assembly with Kapton® Polyimide Insulation, bonded to custom tube via Pressure Sensitive Adhesive (PSA) thermistor, temperature sensor and thermal fuse.
Flexible Heater Assembly with Polyester Mylar® Insulation
Bonded to machined 96-well/32-well metal plate with pressure sensitive adhesive (PSA), RTD temperature sensor, thermal fuse, flex circuit, zero insertion force (ZIF) and electrical connector.
260º High Temperature, Conductive Heater Assembly with Kapton® Polyimide Insulation
Heater for Electronic Enclosure Valve Heaters
Conductive heater assembly with Kapton® Polyimide dielectric insulation. Bonded to machined metalwork with thermistor, wire harness and connector.
